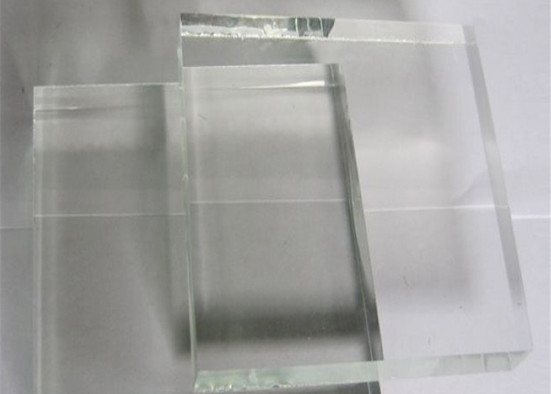

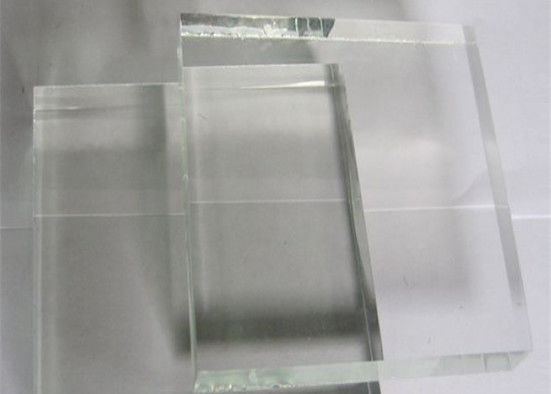

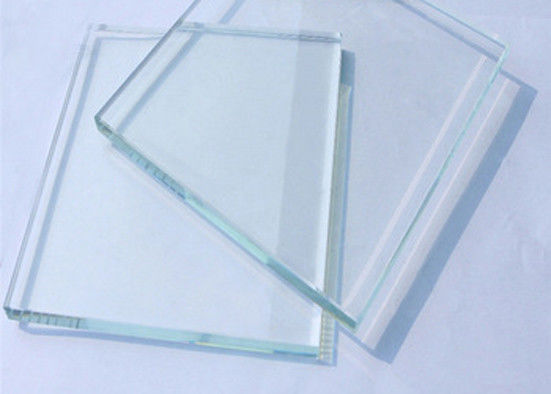

Ultra Clear Low Iron Toughened Glass , Safety Toughened Tempered Glass

Basic Information
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: FGG
Certification: ISO9001
Model Number: FGG-CTG-019
Minimum Order Quantity: 1000m2
Packaging Details: wooden crate
Delivery Time: within 25 work days after receiving confirmed PI
Payment Terms: L/C, T/T
Product Name: Extra Clear Tempered Glass Color: Extra Clear
Thickness: 3mm~12mm Size: Customized
Edge: Mat C, Mat V, Polished C, Polished V Product Feature: Safety, High Transmittance, High Aesthetics, Friendly Environment
High Light:

clear float glass

,

toughened safety glass

Ultra Clear Low Iron Toughened Glass , Safety Toughened Tempered Glass

Features
Ultra Clear Low Iron Float Glass has a low iron oxide content, giving higher transparency and natural colour. The use of new types of materials in its manufacture increases its light transmission capacity and reduces the greenish tone typical of conventional glass, which is most noticeable from the edge and is more obvious in thicker glass.

1. High safety: low spontaneous breakages

2. High transmittance: visible light transmittance near 92%, 6% higher than clear float glass.

3. High aesthetics: More beautiful than clear float glass, with a jewel-like blue edge.

4. Friendly environment: Has obtained certificates of CE, SGS



Specification:

Thickness: 3-12mm

Maximum Size: 2400 x 3660mm

Minimum Size: 300 x 300mm

Ultra clear float glass product with 75% less iron content than standard float glass.

Standard clear float glass has an inherent green tinge, which is more apparent when viewing the edge of the glass, or in stacks of glass panels. This is due to the iron content in the silicate (sand). Extra Clear low iron glasses contain approximately one quarter of the iron content of standard clear float glass, providing an extra clear glass that is crystal clear in appearance.



Low iron glass ingredient:%

Ingredient SiO2 Al2O3 Fe2O3 CaO MgO R2O
Percentage 71.0-73.0 0.1-2.0 0.01-0.015 8.0-10.0 1.5-5.0 13.0-15.0



Optical Parameters

Thickness

(mm)

Visible Light transmittace (%) Visible Light reflectivity(%) Shading coefficient U-value(W/m2K) UV penetration(%)
3 91.5 8 1.05 5.8 76
6 91 8 1.03 5.7 70
12 91 8 1.01 5.5 64




Applications:

Low iron glass is ideal in decorative and furniture applications

Interior and Exterior decoration of the Buildings

Showcases

Industrial products

Arts and Crafts

Furniture and Bathroom products
